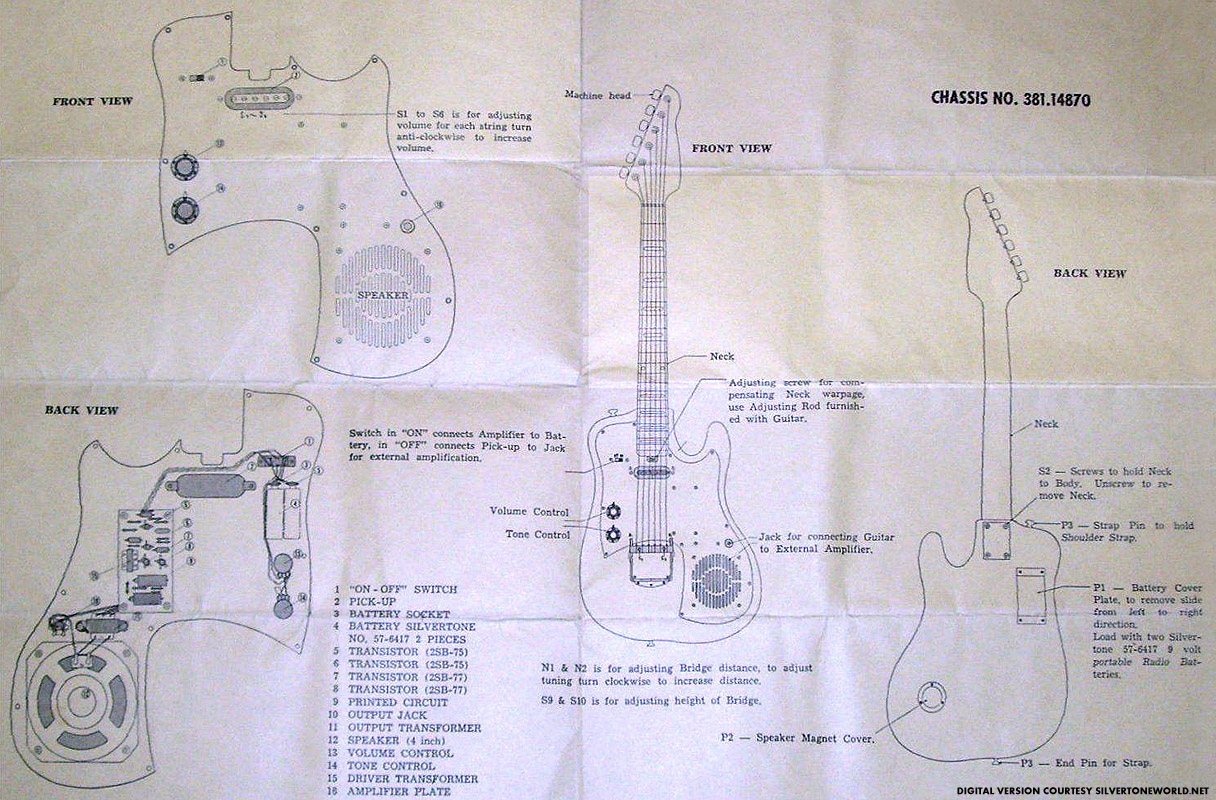

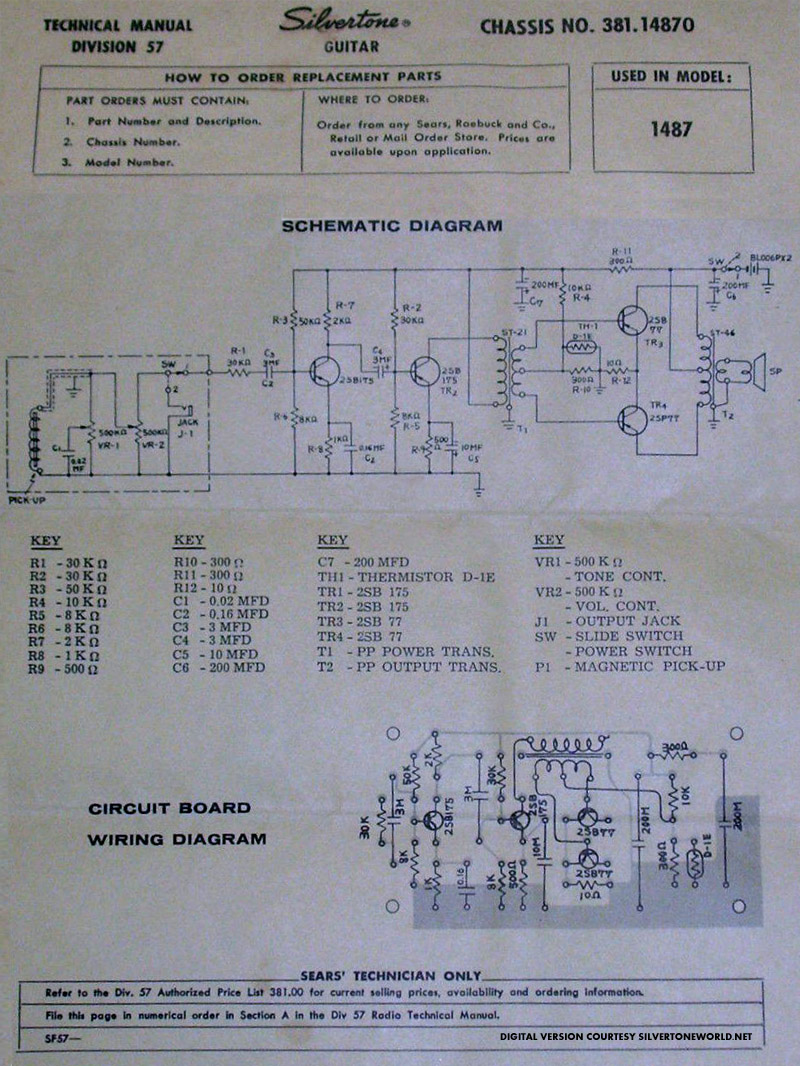

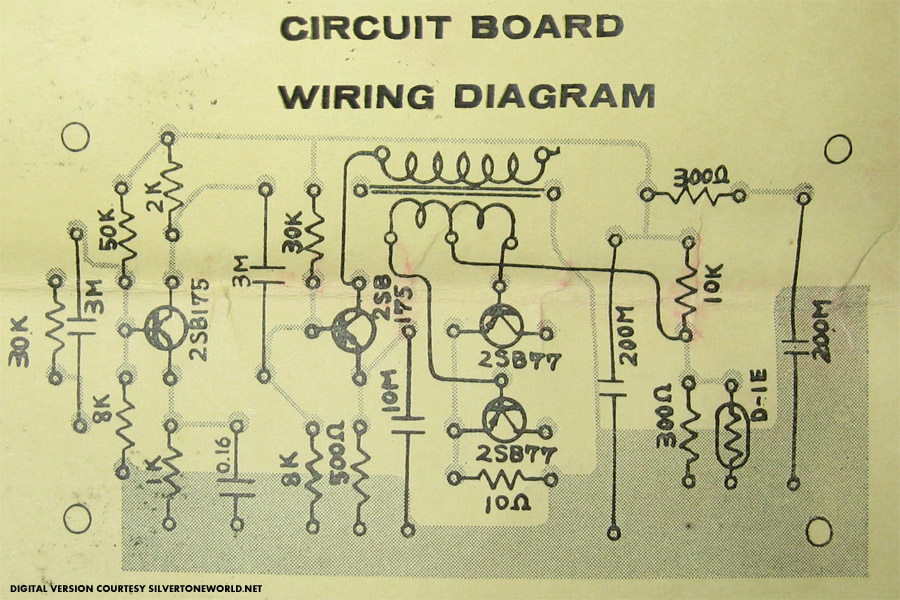

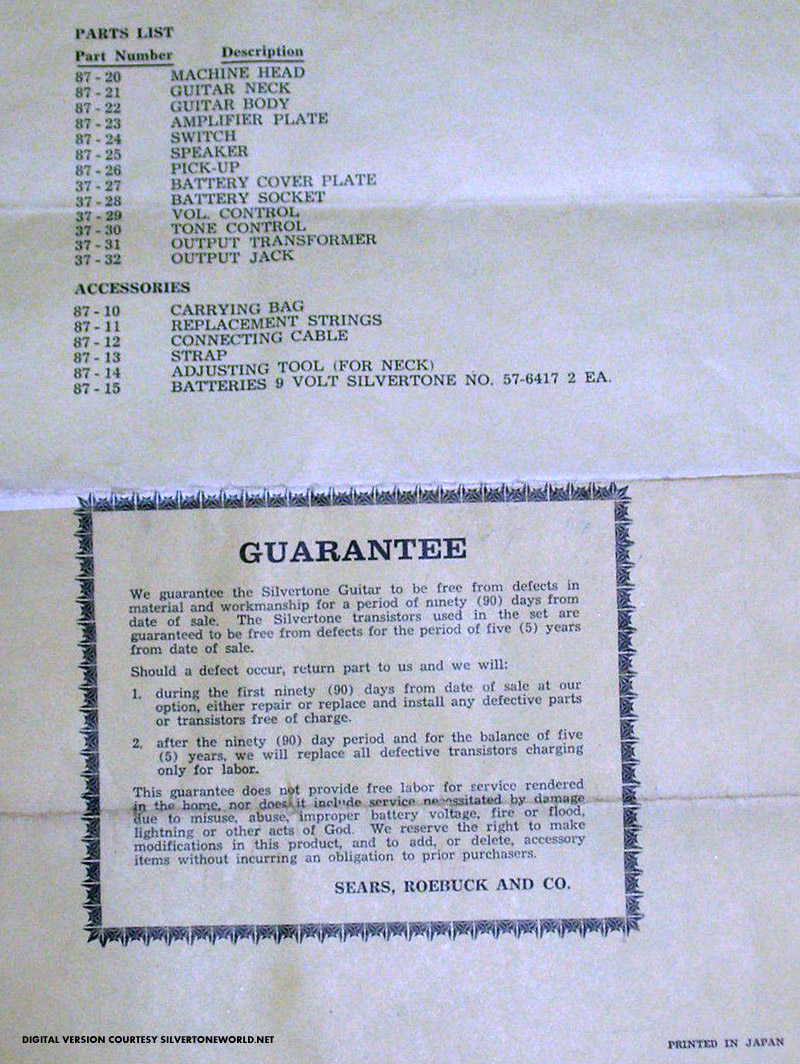

The 1487 had a little more onboard than your average Sears twanger, and the manual that accompanied the guitar had some info you didn't normally get with your Silvertone guitar: a schematic. Here you'll find a standard schematic for the 1/2 watt transistor amp that was onboard the guitar, along with operational tips for pickup pole adjustment, bridge adjustment and compensation, a look at the guarantee, and a parts list.

Click on the individual pics to the left to open each page in a new tab, or just click the link below for all four pages in a ZIP file.


1487 Schematic ZIP
